DKE 365 on DuoKey Cockpit v2
The DuoKey Cockpit for DKE 365 — its configuration surface, key lifecycle and access policies.
Some pages in the wider DKE guide still show screenshots of an older console. The behaviour documented in this section reflects the current Cockpit; refreshed screenshots are being rolled out progressively.
What changed for DKE 365 in Cockpit v2
DKE (Double Key Encryption) protects Microsoft 365 / Purview content with two keys: one held by Microsoft (Azure) and one held by your organization. Cockpit v2 hosts the organization-side RSA key and serves the Microsoft-compatible GetKey and Decrypt operations — now with a redesigned configuration model.
Highlights of the v2 DKE implementation:
Clean management surface

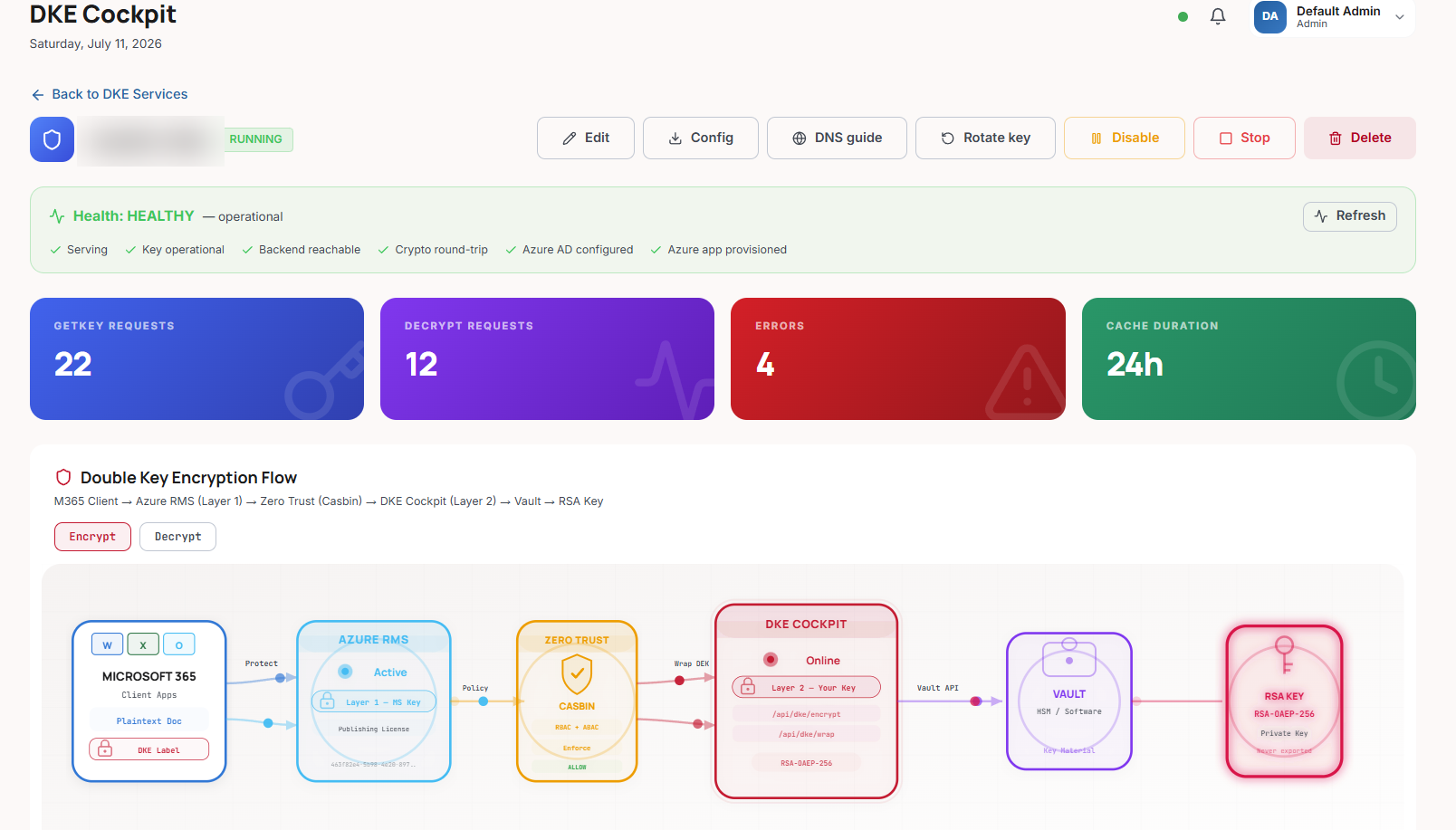

A streamlined management surface to deploy, enable, rotate and monitor DKE services, plus the public protocol endpoints that Office calls directly.
Rotation with overlap
Key-rotation with an overlap window — the previous key keeps serving GetKey and Decrypt during a configurable cache window so no content becomes temporarily unreadable.
Azure AD provisioning
Automatic Azure AD app provisioning via Microsoft Graph on enable.
B2B partner domains
B2B partner-domain support (each allowed domain maps to its own tenant's valid token issuers).
Access-policy engine
A policy engine (RBAC + ABAC) for access control (user / IP / location / time / group) — see Access Policies.
Platform (recap)
Cockpit v2 is the next-generation rewrite of the DuoKey platform. Security highlights that apply to DKE: strong authentication (JWT + WebAuthn), a policy engine (RBAC + ABAC) for authorization, AES-256-GCM encryption at rest, and a tamper-evident, hash-chained audit trail with fail-closed guarantees for security-relevant events. Cockpit v2 is multi-tenant, with each tenant's data isolated automatically.
Keys are held in the tenant vault — DuoKey KMS (software MPC by default) plus HSM backends including Securosys (FIPS 140-2 Level 3 & 4). The DKE private key never leaves the vault.
The same Cockpit v2 platform powers every DuoKey integration. For a broader platform overview, see Oracle TDE → Overview — the platform description there applies to DKE 365 as well.
DKE 365 on the Cockpit — at a glance
| Dimension | DuoKey Cockpit |
|---|---|
| Key algorithm | RSA-OAEP-256 (default) or RS256 |
| Key rotation | Overlap window (cache_duration_hours, default 24) |
| Decrypt auth | Azure AD JWT + optional mTLS (reverse-proxy) + access-policy enforcement |
| Access control | Policy engine — RBAC + ABAC (user / IP / location / time / group) |
Any throughput, latency or footprint figures quoted for Cockpit v2 are vendor targets, not independently benchmarked guarantees.
