Understanding Scanner Results

Understanding Scanner Results

How to read the PQC Readiness dashboard, the Quantum Readiness Score, the CBOM, and individual findings — and how to act on them.

Applies to:

PQC Readiness DashboardQuantum Readiness ScoreCBOMFindings & Severity

The PQC Readiness dashboard

After a scan, results are summarized on the PQC Readiness dashboard. The headline widgets give you posture at a glance, and the tabs (Scans, Crypto Assets, CBOMs, Compliance, Migration, Policies) let you drill in.

Widget	What it tells you
PQC Score	The headline gauge — your overall quantum readiness
Compliance	Share of assets meeting the selected framework(s)
Risk	Average per-asset quantum risk (0–10)
Vulnerable	Share of assets using quantum-vulnerable cryptography
Policy	Policy-compliance rate across scanned assets

Quantum Readiness Score (QRS)

The QRS is a composite 0–100 score with four readiness bands. It is the best single number to track over time and to report to stakeholders.

Score	Band	Meaning
90–100	Advanced readiness	Quantum-safe / hybrid widely deployed
70–89	Developing readiness	Migration well under way
40–69	Early readiness	Mostly classical — moderate HNDL exposure
0–39	Low readiness	Classical only — high HNDL exposure

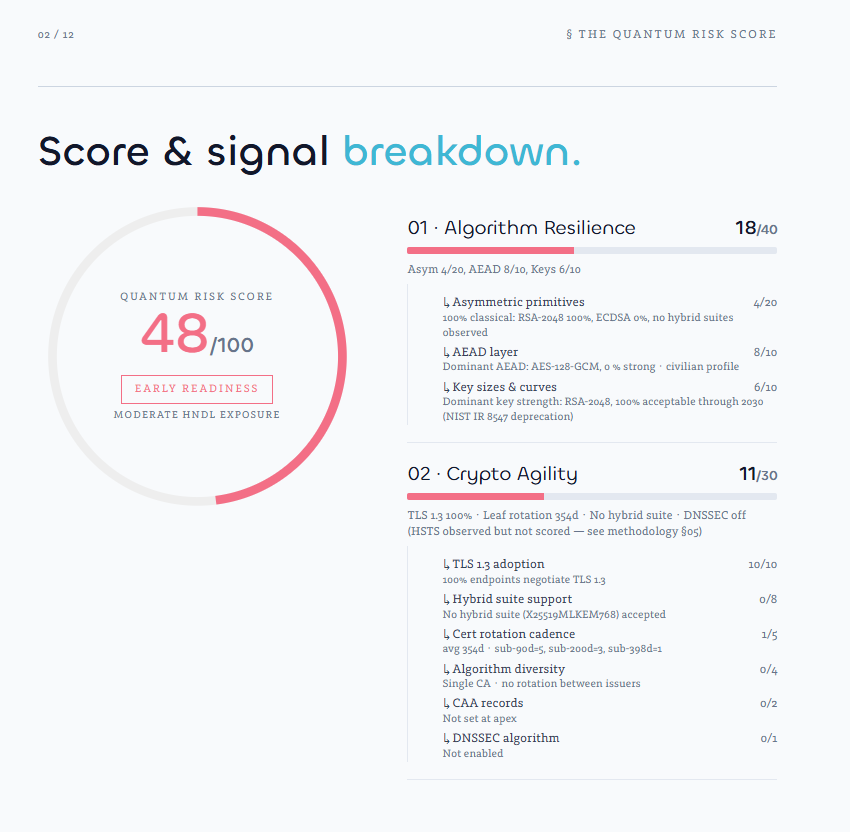

The report's score & signal breakdown shows exactly how the number was earned across the four signals (Algorithm Resilience, Crypto Agility, Harvest Exposure, Migration Posture) and their sub-signals:

Tip

For the full scoring formula, weights, bands and profiles, see QRS Scoring.

Per-asset findings

Each finding is an individual discovered asset (a certificate, key, keystore or endpoint). It carries a quantum risk score (0–10), a severity, and a priority that orders your remediation queue.

Severity	Priority	Suggested timeline
Critical	P0	Immediate
High	P1	Within 3 months
Medium	P2	Within 6 months
Low	P3	Within 12 months
Info	P4	Monitor

A finding includes the asset location, the detected algorithm and key size, the certificate metadata, the risk assessment (severity, priority, reasons), and a recommended action.

Certificate risk quick reference

Algorithm	Risk	Action
RSA-2048 / ECDSA P-256	High	Plan migration to hybrid / ML-DSA
RSA-1024, DSA, 3DES, RC4, MD5	Critical	Replace immediately
RSA-4096 / ECDSA P-384	Medium–High	Acceptable short-term; schedule migration
AES, ChaCha20-Poly1305, SHA-2	Low / Info	Quantum-safe — no action
ML-KEM / ML-DSA / Hybrid	Low	Post-quantum — target state

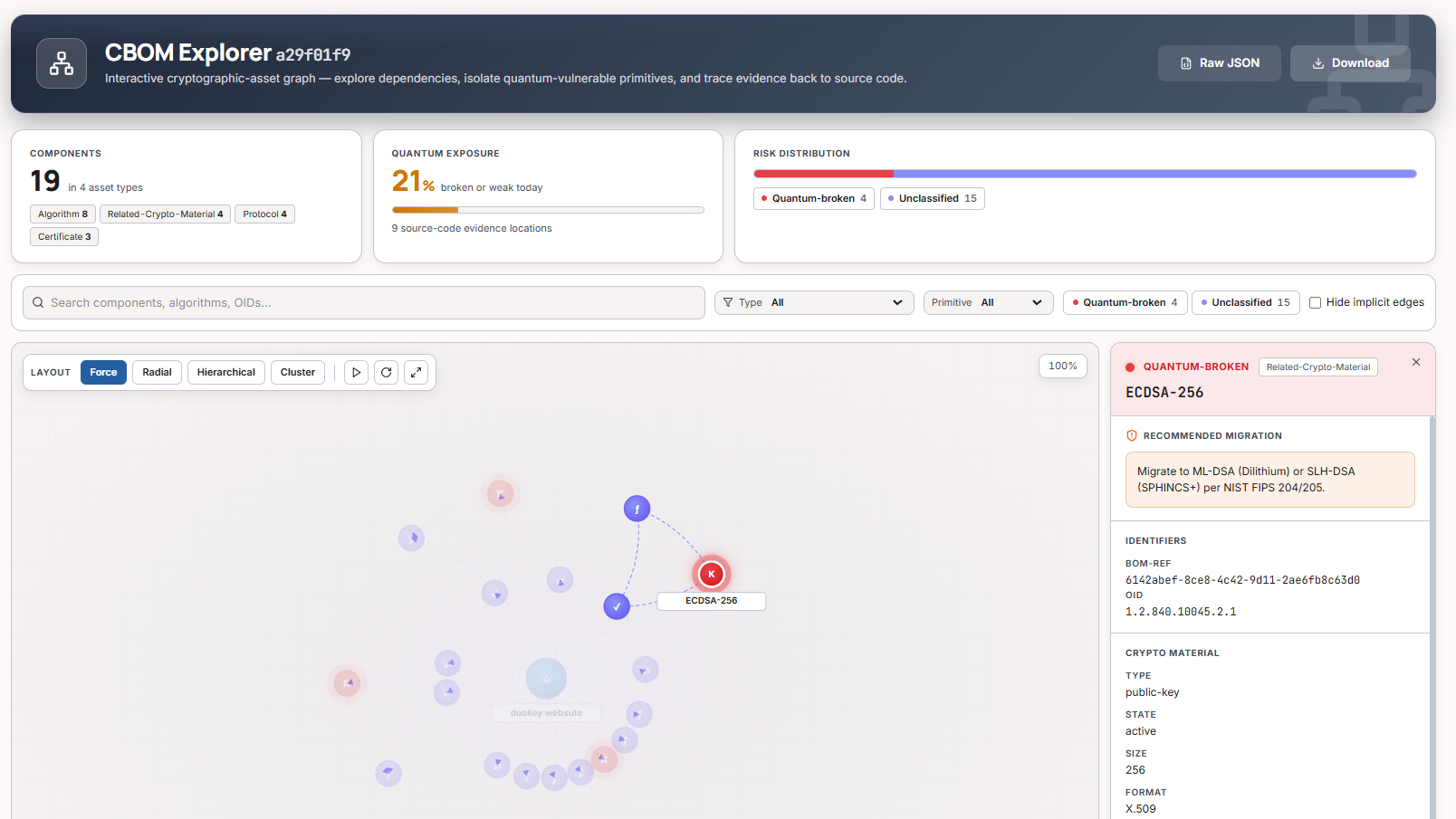

CBOM — Cryptographic Bill of Materials

The CBOM Explorer renders the CycloneDX inventory as an interactive graph. It surfaces the share of components that are quantum-broken or weak, lets you isolate vulnerable primitives, and shows a recommended migration for each one.

Note

Selecting a component shows its identifiers (BOM-Ref, OID, key type/size, format), its quantum-exposure classification, and the recommended post-quantum replacement (e.g. ML-DSA / SLH-DSA per NIST FIPS 204/205). See the CBOM Guide.

Taking action

Triage by priority

Start with P0/P1 findings on public-facing and high-value systems.

Adopt hybrid first

Deploy hybrid (classical + ML-KEM) to gain protection without breaking compatibility.

Rotate certificates

Reissue quantum-vulnerable certificates with PQC or hybrid as they come up for renewal.

Track the QRS

Re-scan regularly and watch the QRS trend upward as you migrate.

Export & reporting

Format	Use
PDF	Executive Quantum Risk Assessment report
CycloneDX CBOM (JSON)	Machine-readable cryptographic inventory
JSON / YAML	Automation and integrations
SARIF	CI/CD security tabs (GitHub / GitLab / Azure DevOps)

Next steps

Getting Started

Run your first scan

QRS Scoring

How the score is computed

Migration Planning

Plan your PQC transition
